| Model | Size | Model | Size | |
| DKB | 14*24*5/7 | DKB | 75*89*8/11 | |
| DKB | 16*26*5/7 | DKB | 80*94*8/11 | |
| DKB | 18*30*6/9 | DKB | 85*99*8/11 | |
| DKB | 20*32*6/9 | DKB | 90*104*8/11 | |
| DKB | 22*34*6/9 | DKB | 95*109*8/11 | |
| DKB | 25*37*6/9 | DKB | 100*114*8/11 | |
| DKB | 28*40*6/9 | DKB | 105*121*9/12 | |
| DKB | 30*42*6/9 | DKB | 110*126*9/12 | |
| DKB | 32*44*7/10 | DKB | 115*131*9/12 | |
| DKB | 35*47*7/10 | DKB | 120*136*9/12 | |
| DKB | 36*48*7/10 | DKB | 125*141*9/12 | |
| DKB | 40*52*7/10 | DKB | 140*160*10/14 | |
| DKB | 45*57*7/10 | DKB | 145*165*10/14 | |
| DKB | 50*62*7/10 | DKB | 150*170*10/14 | |
| DKB | 55*69*8/11 | DKB | 155*175*10/14 | |
| DKB | 60*74*8/11 | DKB | 160*180*10*14 | |
| DKB | 63*77*8/11 | DKB | 170*190*10*14 | |
| DKB | 65*79*8/11 | DKB | 180*205*12/17 | |
| DKB | 70*84*8/11 | DKB | 200*225*12/17 |

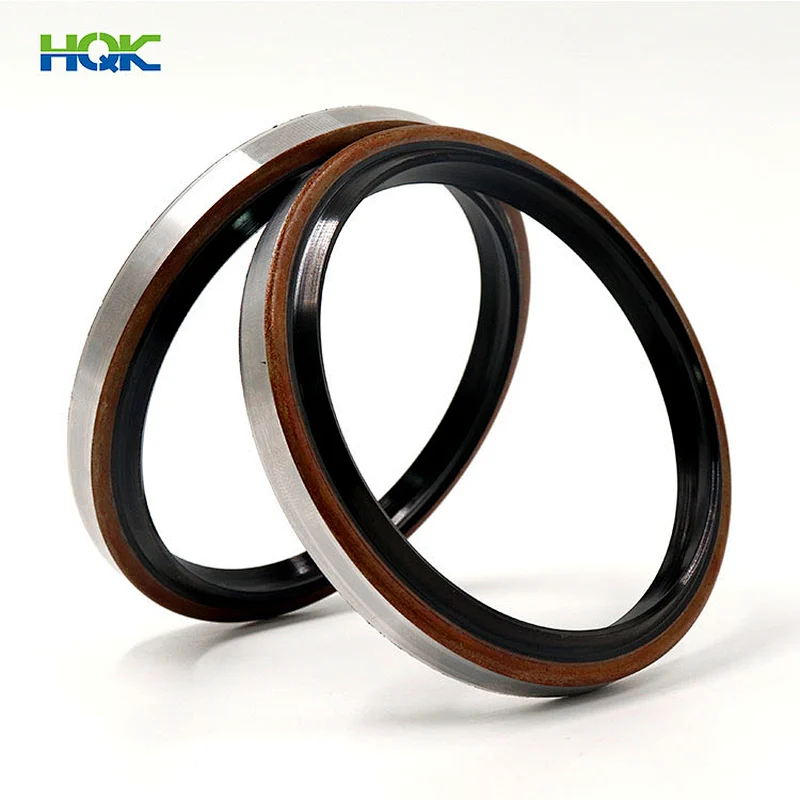

DKB dust ring used to prevent dust, dirt, sand, metal shavings into the hydraulic cylinder, reducing the external
Pollutants to sneak into the sliding element to cause the risk of scratches, excellent dustproof effect can be achieved through the special design on the lip of the dust ring, DKB type has a strong resistance to abrasion, permanent deformation is small by the use of proven resistance to external mechanical the shock is characterized by the use of. Seal groove diameter and the interference fit of the metal, the dust ring may be firmly mounted in the proper position axially formed trench.
With the flush, and all the lip having a high degree of protection for damage caused by the external reason.
DKB-type dust from the engineering point of view is a suitable cylinder head sealing device.
1.Working Temperature: -35C - + 120C
2.Speed: 0.5 m/s
4.Media: hydraulic oil, emulsion, water
5.Hardness: NBR 70-90 Shore A
6.Material: Steel seal ring: metal skeleton structure
O ring: NBR
7.Advantages:
-High abrasion re-sistance.
-Suitable for the most severe working conditions.
-Easy installation.
8.Application Range: Applied to agricultural machinery,
hydraulic presses, injection moulding machines,
hydraulic controlling systems, forklifts, cranes,
rolling machines, handling machinery, etc.
Pollutants to sneak into the sliding element to cause the risk of scratches, excellent dustproof effect can be achieved through the special design on the lip of the dust ring, DKB type has a strong resistance to abrasion, permanent deformation is small by the use of proven resistance to external mechanical the shock is characterized by the use of. Seal groove diameter and the interference fit of the metal, the dust ring may be firmly mounted in the proper position axially formed trench.
With the flush, and all the lip having a high degree of protection for damage caused by the external reason.
DKB-type dust from the engineering point of view is a suitable cylinder head sealing device.
1.Working Temperature: -35C - + 120C
2.Speed: 0.5 m/s
4.Media: hydraulic oil, emulsion, water
5.Hardness: NBR 70-90 Shore A
6.Material: Steel seal ring: metal skeleton structure
O ring: NBR
7.Advantages:
-High abrasion re-sistance.
-Suitable for the most severe working conditions.
-Easy installation.
8.Application Range: Applied to agricultural machinery,
hydraulic presses, injection moulding machines,
hydraulic controlling systems, forklifts, cranes,
rolling machines, handling machinery, etc.
