The NBR rubber v packing oil seal is also called chevron packing oil seal, and it is made with nitrile rubber as the based material. The difference between it and ordinary oil seal is that its rubber component is sandwiched with one or more layers of canvas, which greatly improves the wear resistance of the oil seal , so it is mostly used in used in mechanical oil cylinders. It can also be used as dust-proof in the hollow exposed part of the top of the machine.
Specification / Technical Data
Item
NBR Rubber V shape Fabric Packing Seal Ring Hydraulic oil seal
Material
NBR rubber + fabric...etc
Color
black or customized

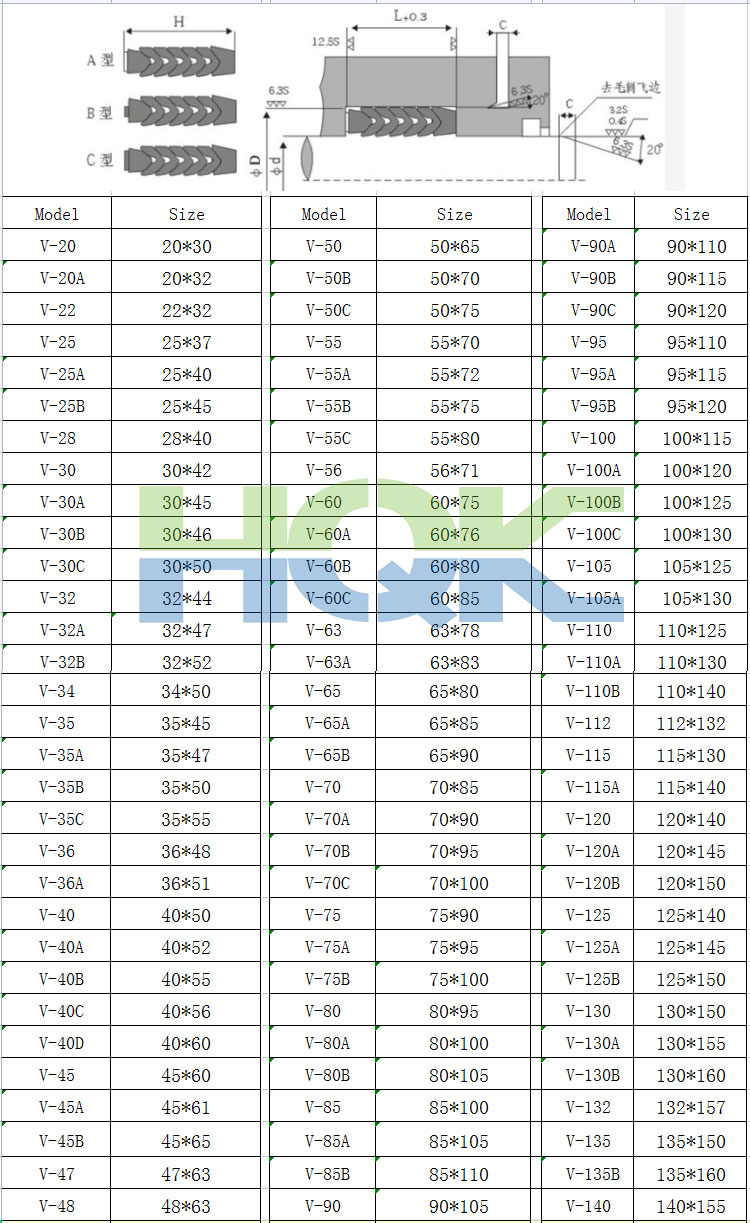

Dimension(mm)
20*30*5mm-500*540*16mm or customzied
Pressure Range
0-32MPA
Temperature Resistance
-30~+120℃
Speed
25m/s
Product Features:
- High quality raw material, excellent oil/ acid/ high temperature .... resistance
- Excellent durability in using and good sealing effect
- Wear resistance, long service life
- Show stable in high speed rotation.
Applications:
- Mechanical oil cylinders, Hollow exposed part of the top of the machine.
